Test report DT10 TIPS 01

Customizing Test Report (Selection of display items)Posted on
2012-11-29

You can select items to be displayed in the Test Report view.
Test Report has many items, but there might be any item you do not use.
In such case, let’s customize Test Report easy to see by displaying only necessary items.

First of all, you select [Tools] -> [Setting] and display the Setting dialog.

menu(Setting dialog)

You click “Customize Test Report View” in the setting dialog.

Setting dialog

You select the items to be displayed in the Test Report View in this dialog.
The next time, the only items checked in detail list of this dialog will be shown.
For example, if you do not use AnalogBox, please check off “L-Ch1~4, A-Ch1~2″.

show/hide

At this point, you can change the order of items by using “Up /Down” button.

UP/DOWN

When you finished selecting items to be displayed, click “OK” button.

OKButton

You will see the only items, which are checked in the list, in Test Report.

Test Report

Following a process by using Test ReportPosted on
2012-11-29

When you try to understand in what order the program executed by using Test Report, there are another information other than the executed path in Test Report. (CPU load data, Variable value data, EventTrigger data and so on…)

So let’s use the filter setting and display only the executed path in Test Report.
The filter setting allows you to easily follow the program’s executed path.

First of all, you select [Report Analysis] -> [Set the View filter of Test Report...] and display the View filter of Test Report Setting dialog.

menu(Set the View filter of Test Report)

Please set the following conditions in the View filter of Test Report Setting dialog.

  • All CPU load data turn to hide (“From 0% to 100% of data will be hide” in the window.)
  • Check “Hide the Report data in byte unit within the variable value output data”
  • Check “Hide the EventTrigger data”

filter of Test Report Setting dialog

When you click “OK” button, unnecessary report line other than the processing will be minimal.

OK

You can check and forward the execution path of the process by entering “F10″ key in Test Report.

F10key

Narrowing the range of Report Data (Filtering)Posted on
2012-11-29

You can narrow the range of Report Data in various conditions by using filtering function.

It is difficult to check and follow every detail process since the Report Data collected by DT10 is enormous amount of volume.
So when you perform the analysis of data by using DT10, you can display necessary data to be checked. By filtering the data to shown in Test Report, you can expect to reduce your workload to analyze bugs.

First of all, you select [Report Analysis] -> [Set the View filter of Test Report...] and display the View filter of Test Report Setting dialog.

menu(set the View filter of Test Report)

In order to set the filtering, you turn ON the check box of “Enable” for the type to become a filtering condition and enter the value in the “Setting Value” field. Also you can select whether show or hide the setting conditions by choosing “Show/Hide” in the “Process” field.

filter of Test Report Setting dialog

Type Description
Source /
Function
You can configure filtering settings by source file name or function name.

e.g. You would like to display a designated source file or function only in Test Report. You would like to not display a designated source file or function in Test Report.

Step type You can configure filtering setting by the Step type.

e.g. You follow the process by function basis by only showing FuncIn/Out.
You do not show the Free Test Point manually inserted for test. -> You can set filtering depending on the type of Test Point.

Execution Time You can configure filtering settings by specifying the range of Execution Time.

e.g. You would like to confirm processing flow of 1ms before and after of a certain process.

Module /
Task
You can configure filtering settings by module name or task name.

e.g. You would like to display a designated module or task only in Test Report. You would like to not display a designated module or task in Test Report.

Mark /
Mark type
You can configure filtering settings by pre-assigned mark or its associated mark type.
Step You can configure filtering settings by specifying any step.

e.g. It is helpful when the step you wan to see can not find in Test Report.

Input data
(Logic, AD)
You can configure filtering settings by AnalogBox data.
e.g. You would like to check the process which the voltage of A-ch 1 is equal to or greater than 3V.
You would like to check the process which L-ch1~4 are in all Hi state.
Interface /
Shared interface /
Module start /
Module end /
Task start /
Task end
You can configure filtering settings by pre-assigned interface attribute.
Execution attribute You can configure filtering settings by pre-assigned execution attribute (normal / unused / Pass through prohibited / Non-passing).

e.g. You would like to confirm whether the steps with execution attribute of unused / pass through prohibited / No-passing would be passed or not.

CPU load data You can configure filtering settings by specifying the range of CPU load data.

e.g. You would like to display CPU load data only when CPU load rate is more than 80%.

Variable dump You can configure to hide the ”***** Dump memory *****” message from Test Report.
EventTrigger You can configure to hide EventTriger data from Test Report.

Narrowing the range of Report Data (Trimming)Posted on
2012-11-29

As we explained in the “Narrowing the range of Report Data (Filtering)” section, it becomes highly efficient to analyze bugs by narrowing the range of necessary Report Data.
You can also narrow the range of Report Data by using trimming function.

In order to perform trimming, you right-click on the Test Report and select [trimming] in the popup menu.

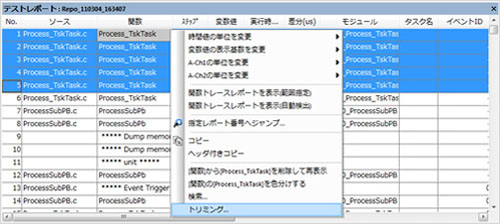

Test report(Popup menu)

When you select [trimming], the trimming dialog appears.

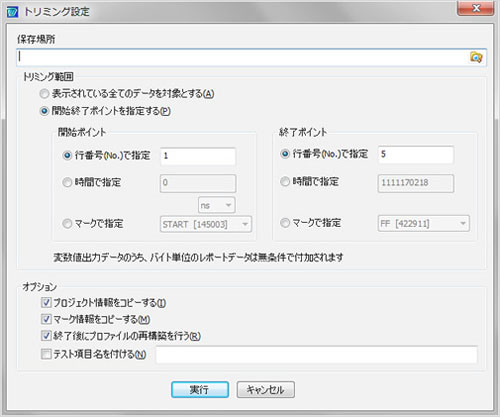

Trimming settings dialog

You configure the save location, trimming range, option settings in the trimming dialog.

Save location

Please specify the location to be saved for trimmed Report Data.
When you click the folder button, a folder selection screen appears.

Trimming range

Please specify the range to perform trimming. There are some ways to specify the range.

Targeting all data being displayed

-> The range for this trimming is targeting all data being currently displayed. This is ideal for trimming to the Report with filtered.

Specify the start and end points

-> You can specify the trimming range for Report Data.

  • Specify by line No.
  • Specify by time
  • Specify by the mark

※Before opening the “Trimming Settings” dialog, you choose all the range to be trimmed in the Test Report, it will automatically set the above line number or time as a value to be used for trimming.


Option

You can configure settings for the trimmed Report.

  • Copy project information
  • Copy mark information
  • Perform restructuring of profile after the completion
    -> The above 3 points should be checked when you confirm the trimmed Report Data in the same project.
  • Add the test item name

※Please enter the test item name if necessary.


After settings are finished, please click “Execute” button.

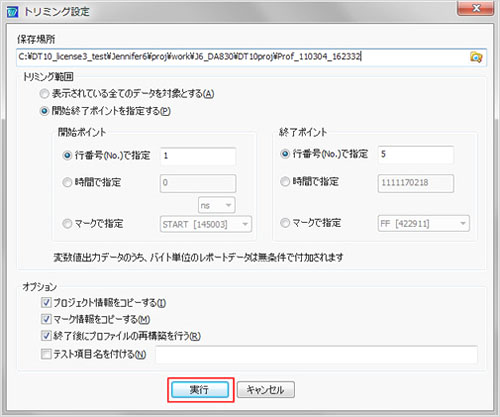

Execute

When you open the Test Report created in the “Save location”, the Test Report, which trimmed with the specified range, appears.
(You can open the Test Report by selecting [Report Analysis] -> [Display Test Report].)

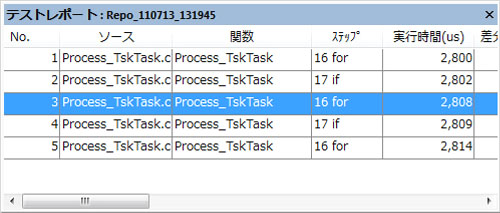

Test Report

Highlight as colored sections of the Report DataPosted on
2012-11-28

You can highlight the selected items, strings and values as colored section on Test report View.

When you would like to check Test Report with attention to certain source file or function, you also need to check processes behind it.
If you use filtering settings, it will lead to see only data to be matched.
In such cases, this color-coded feature of report would be useful.

You choose the strings or numbers to give attention and right click to display the pop up menu.
You select “Color coded [strings or value] from [item name]” in the pop up menu.

(* The [item name] and [strings or value] may vary depending on the data.)

Popup Menu

When you select “Color coded [strings or value] from [item name]“, the color of Reeport Data will change.

This allows you to focus on the data mainly with grasping overall processing flow.

Color-coded set

You can also color-code multiple items, it allows you to check the Report Data focusing the conditions.

Multiple color-coded set

In order to begin the report analysis smoothlyPosted on
2012-11-20

You can left any mark (comment) in Test Report of DT10.
By this mark in the Test Report, it will lead to migrate to analysis work smoothly.

The marking feature allows you to enter the comments at any timing during getting Test Report. Therefore, it makes clear for you to identify the range you should focus at the analysis by linking the key stroke of target device with the comment.

For example, in case that you would like to get Test Report from “Power On” to “Power Off” of the target, you should start getting Test Report in the state of the target’s “Power Off”.
When you start getting Test Report, “Getting Test Report” dialog appears.
You should enter your mark in the “Book Mark” field on this dialog.

Dialog while retrieving test report

At the same time of the target’s “Power On” operation, enter “START” in the comment field and click “Set” button. So you will find the mark you set on the bottom.
Also at the same time of the target’s “Power Off” operation, input the comment as “END”.
You set the mark in this way, your comment will be registered into the log nearby “Power On, Power Off”.

When you stop getting Test Report. you can find your marked strings in the “Mark”, “Mark type” field.

Test Report(mark)

You also find a list of marks called as “Mark View”.

Mark View

You can find the Report No. that you set the mark by checking the Mark View.
Also you double click on the Mark View, you can jump to the designated Report No. of Test Report.

The example in the above figure, the marked “START”~”END” is corresponding to the Report No. 400000~450000.

You can narrow the range by trimming Test Report or specifying the range for Function Trace Report, Event Trace Report within the Report No.400000~450000.

Additionally, you can edit / add the mark to the Test Report which already obtained.

You set the mark to the Test Report which you once finished the analysis, it will lead to the smooth re-analysis when you need it.

Mark Edit

How to forward only the step which you would like to see in Test Report.Posted on
2012-11-18

You can forward in sequence only the step which you would like to see in Test Report.
This method is useful for the case that you do not need filtering, but there are steps not to be checked.

First of all, you configure the filtering with the condition of steps to be shown in Report Data.

Filter Setting

Then you turn ON the check box of “When the Function Trace is analyzed, the filter setting is considered” in the settings dialog. (Select [Tool] -> [Settings] in menu.)

Consider the filter settings during trace analysis function

When you display Function Trace Report, the Function Trace Report which display only the steps setting filter.

Function Trace Report

After finishing Function Trace Analysis, reset the filter of Test Report.
When you perform the step movement (Ctl+F8F7…) from Function Trace in that state, you can forward only step you would like to see while you overview in the Test Report.

Step Movement(Ctrl+F8F7...)
